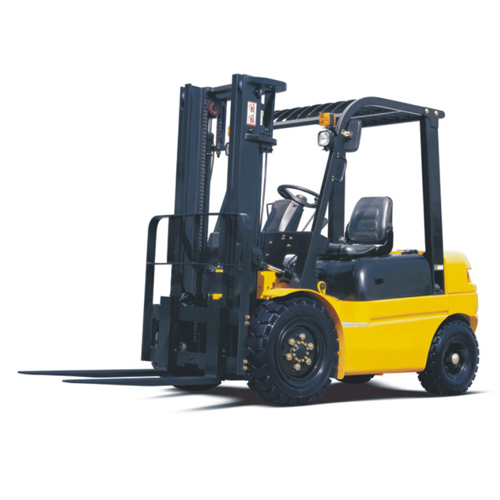

| Type | Unit | TJ-80H | ||
| Rated capacity | kg | 10000 | ||
| Dead weight | kg | 15000 | ||
| Standard Fork: L×W×H | mm | 1600*180*80 | ||
| Minimum Turning radius | mm | 4350 | ||
| Overall dimensions: L×B×H | mm | 6090*2280*3050 | ||
| Max. Travel speed | Km/h | 26 | ||
| Gradeability (Full load) | % | 20 | ||
| Load center distance | mm | 600 | ||
| Tilt angle of mast (F/B) | ° | 6°/12° | ||
| Max lifting height | mm | 3000 | ||
| Free lifting height | mm | 200 | ||
| Min. ground clearance | mm | 235 | ||
| Track (F/R) | mm | 1680/1800 | ||
| Wheelbase | mm | 2890 | ||
| Tyre | Front | 4×10.00-20-16PR | ||
| Rear | 2 ×10.00 - 20-16PR | |||
| Engine | Type | LR6B3-23 | ||
| Ratedpower/speed | Kw/r.p.m | 92/2200 | ||
| Max. torque/Speed | N.m/r.p.m | 460/1400-1600 | ||
